Linear Actuators

ANT-38

ANT-38 is a upgrade version of ANT-35 but with internal limit switches for ends stop. Thanks to the end limits design, ANT-38 can make up the inadequacy of ANT-35 for the two ends protection also a straight moving shaft. ANT-38 is a slim in-line actuator with a robust design, high efficiency, hall sensor for positioning and synchronous function. Also stainless steel version as option for marine and harsh environments.

Max load capacity
2300N
Max speed
30mm/s
Max power
60W
Protection class
IP66/67M
Voltage
12V/24V

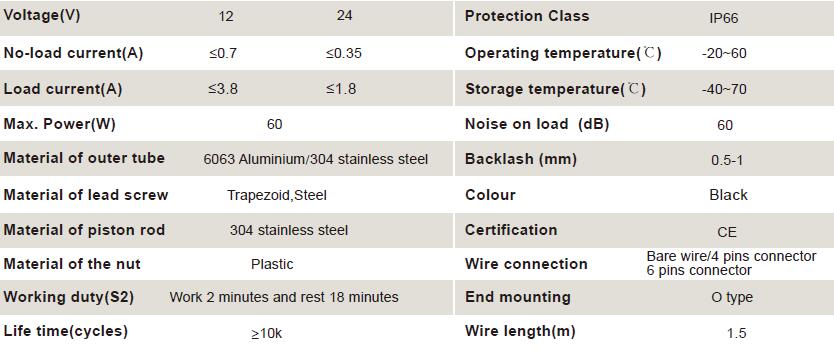

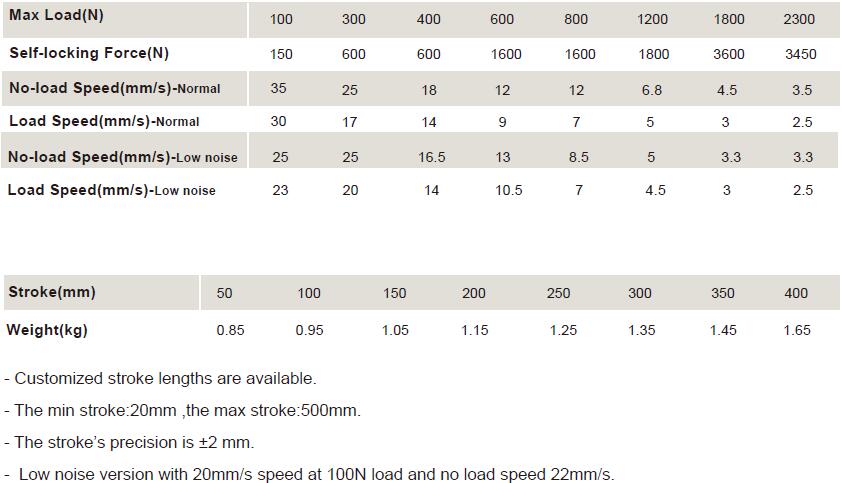

SPECIFICATIONS

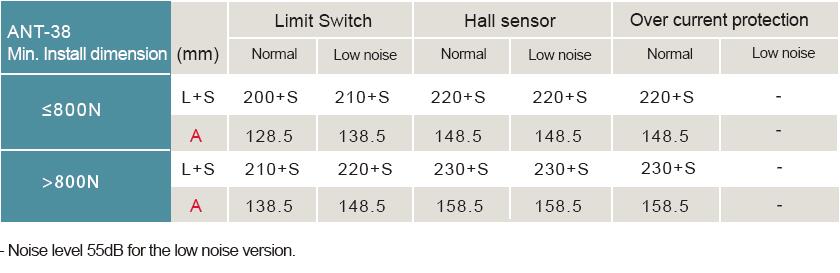

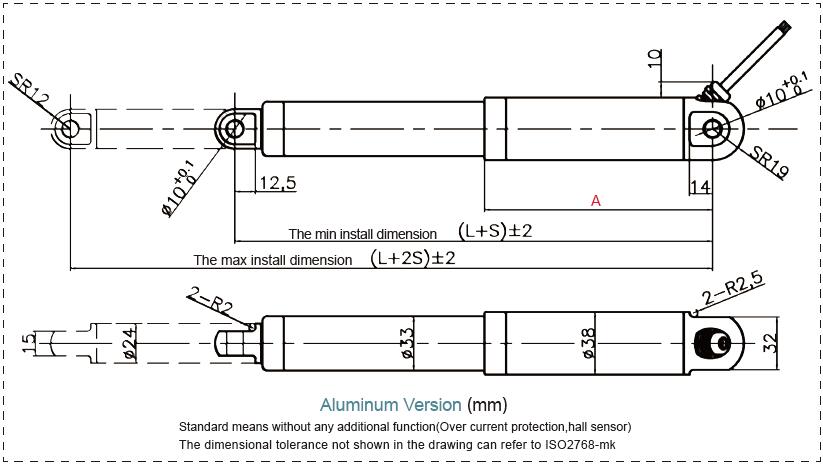

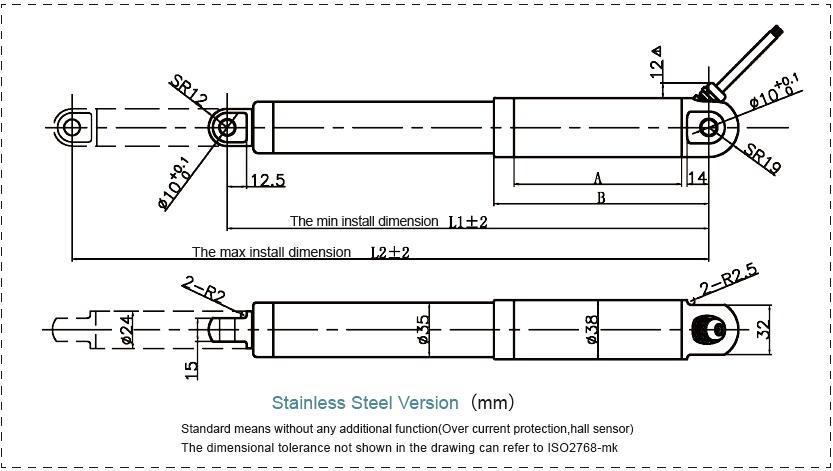

DIMENSIONS

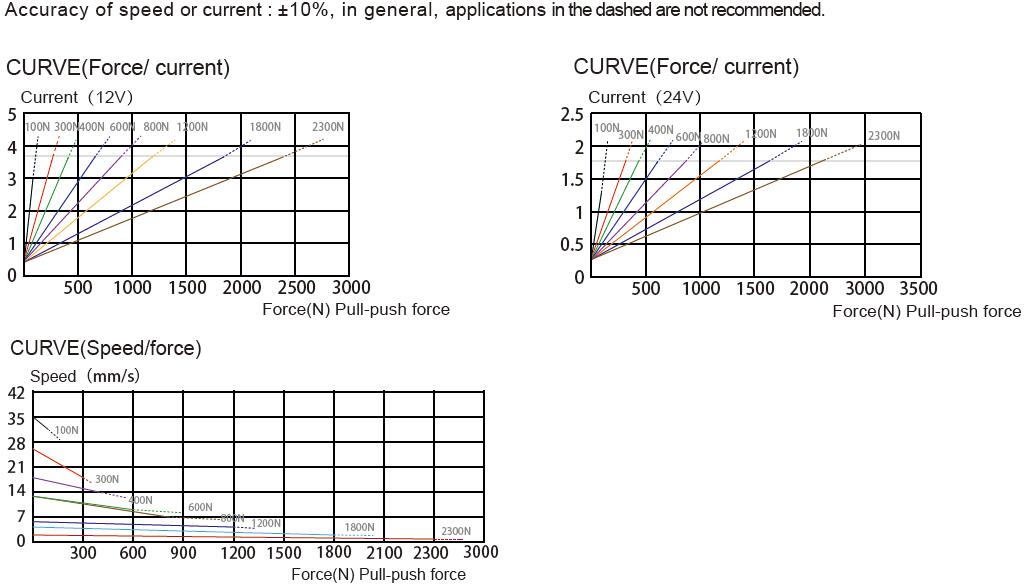

CURVES


OPTIONS IN GENERAL

1.OVER CURRENT PROTECTION


2.HALL SENSOR


hall sensor2.jpg

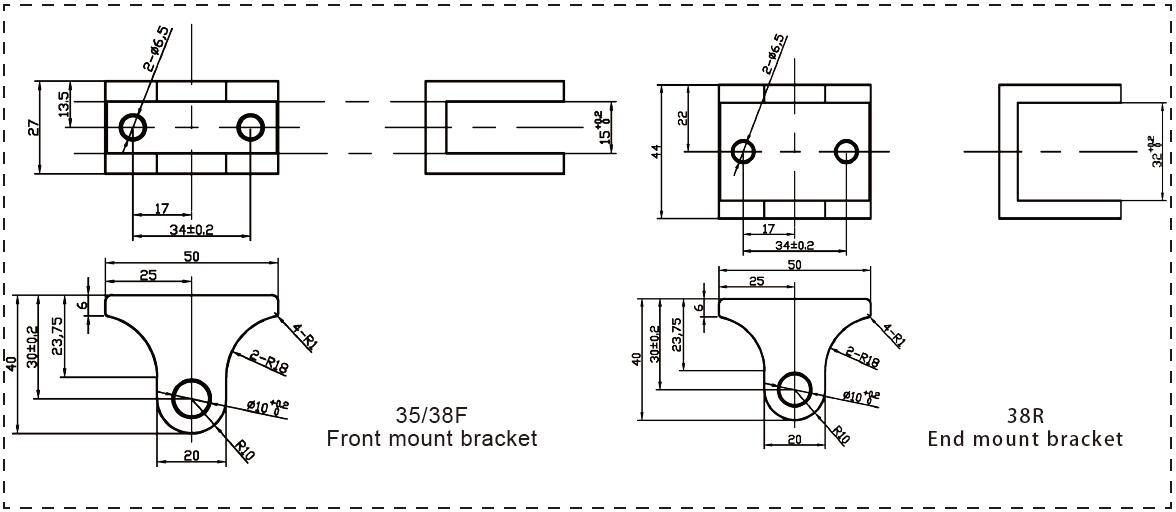

MOUNTING BRACKETS


APPLICATIONS

38應用領域 ying.jpg
