Linear Actuators

ANT-63

ANTUATOR trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance free design. A strong planetary gearbox is used to guarantee the life time of the actuator when a high load on the trim tab.Internal limit switches for both ends as the protection to ensure reliable performance. The unit is totally corrosion free and water proof with IP67M.Unlike hydraulic trim tabs, there is no oil to leak out with ANTUATOR trim tab actuators. 5 years warranty is offered.

Max load capacity
2300N
Max speed
12mm/s
Max power
Protection class
IP67M
Voltage
12v/24v

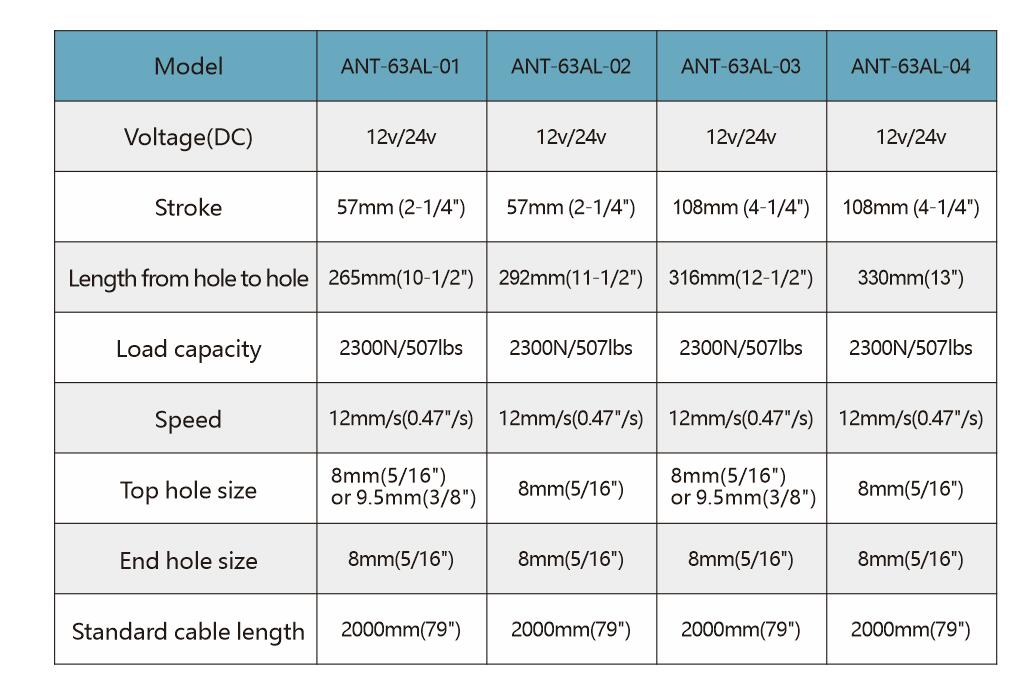

SPECIFICATIONS

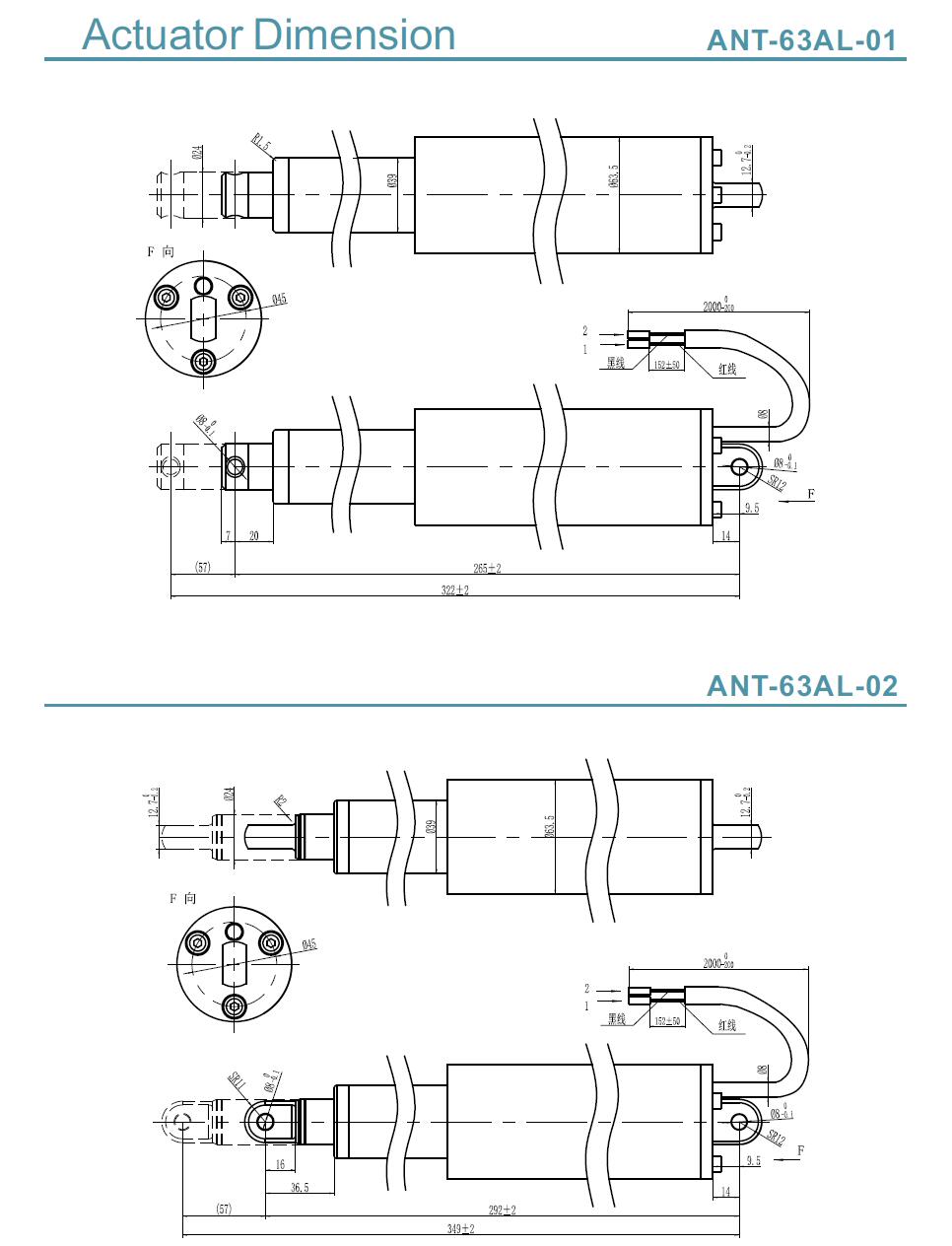

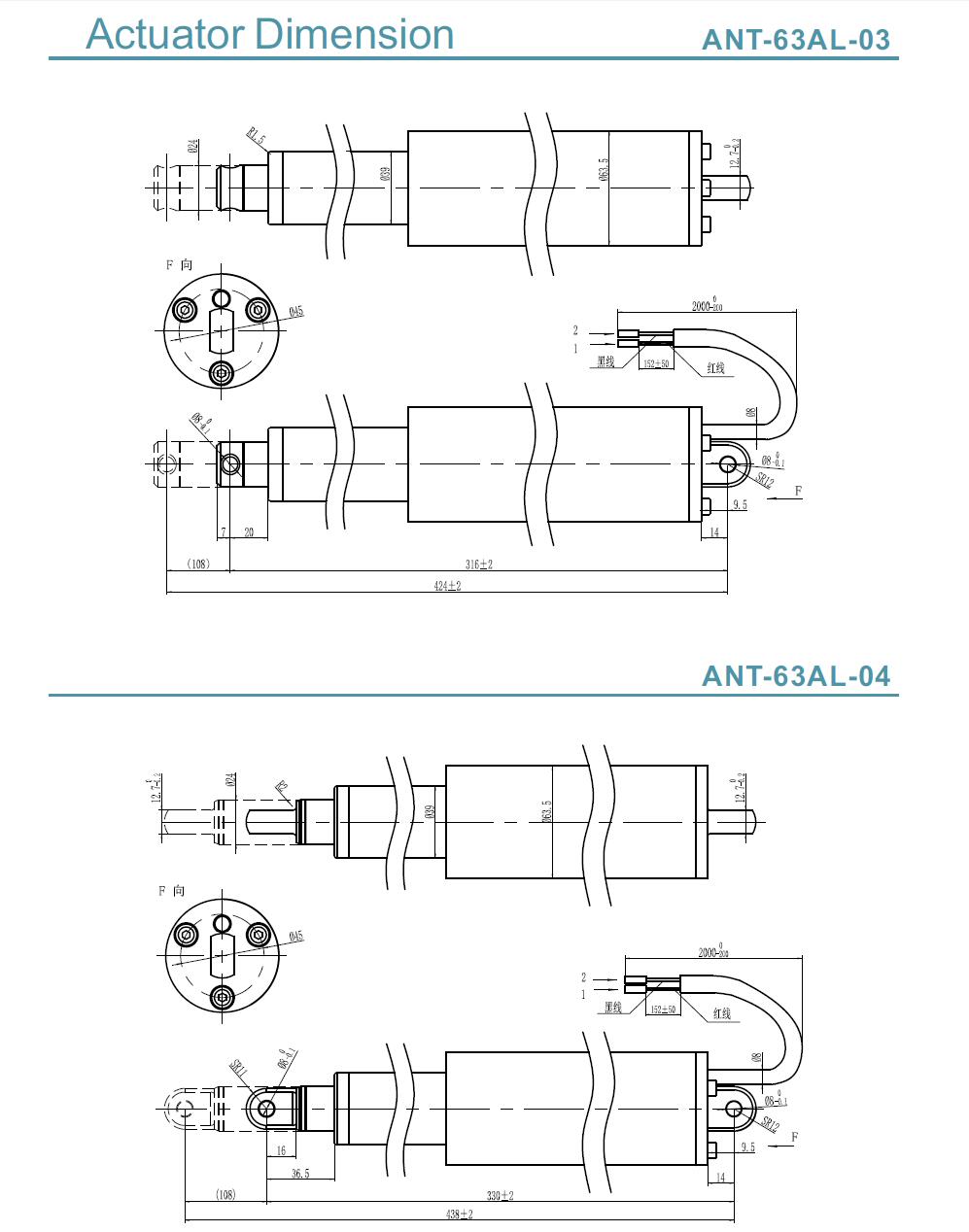

DIMENSIONS



CURVES
OPTIONS IN GENERAL
MOUNTING BRACKETS

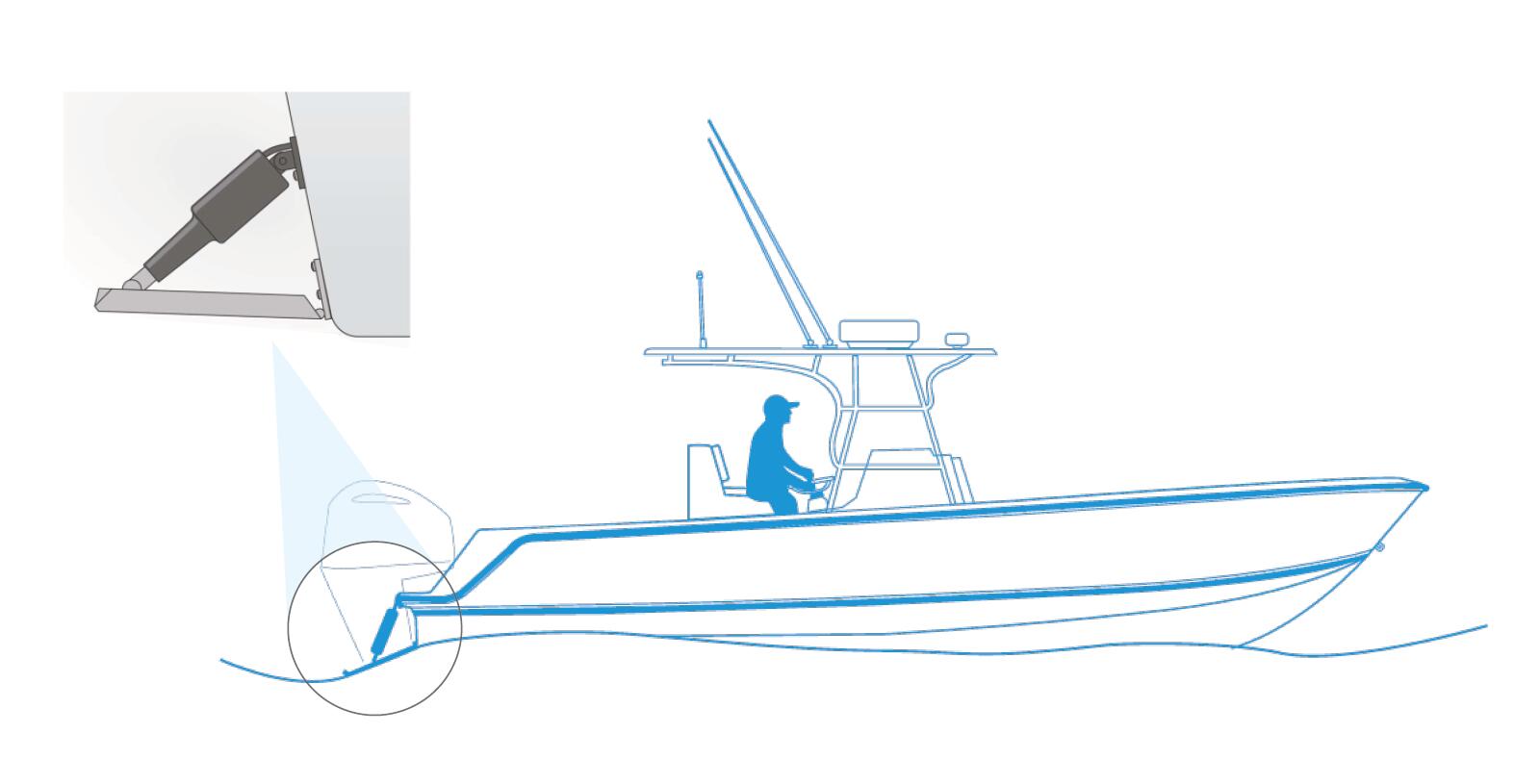

APPLICATIONS
